Kommander ITR Tanks

Self bunded fuel storage with integrated pump bays makes for a flexible fuel storage tank and management solution in any location with minimal site preparation.




Information
Features
Types
Components



INTECH Kommander ITR tanks are a self-contained above ground fuel storage tank (AST) and fuel management solution for diesel, gasoline, lubricants and other hydrocarbon liquids – from 12,000 to 75,000 Litres.

All Kommander ITR tanks are constructed to international ISO container footprints for ease of transport and transfer. The standard footprints are 10, 20 or 40 foot utilizing the container lock dimensions and ensures ease of transport, saving your business time and money.

Pressed corners and a reinforced top means a robust tank for your fuel storage needs. The main points in this design are a curved tank roof finish, greater capacity for safe fill and the ability to see under the tank.

All above ground and visible for ease of monitoring and maintenance.

MULTIPLE PRODUCT/COMPARTMENTS WITHIN THE ONE TANK IS OPTIONAL.

Kommander ITR tanks can be supplied with ready-to-use pumps, reels, meters and filtration. Standard and custom build add-on compartments can be specified to hold lubricants, coolant or waste oil as required.

Multi products within same tank footprint are available if required. End mounted security cabinets can be fitted including steel or roller shutter doors and internal spillage trays, to house pipe work, pumps, gauging, alarms and controls.

KOMMANDER ITR TANKS OFFER A FAST, EASY AND CONVENIENT FUEL STORAGE SOLUTION

Model

Safe Fill (litres)

Length (mm)

Width (mm)

Height (mm)

Weight (kg)

ITR-12

11,100

2,991

2,438

2,896

4,300

ITR-20

17,000

2,991

2,438

2,896

4,300

ITR-30

29,260

6,058

2,438

2,896

6,800

ITR-38

35,000

6,058

2,438

2,896

6,900

ITR-68

65,500

12,192

2,438

2,896

12,000

ITR-75

71,300

12,192

2,438

2,896

12,100

*ITR-20, ITR-38 and ITR-75 model comes without a bunded pump bay

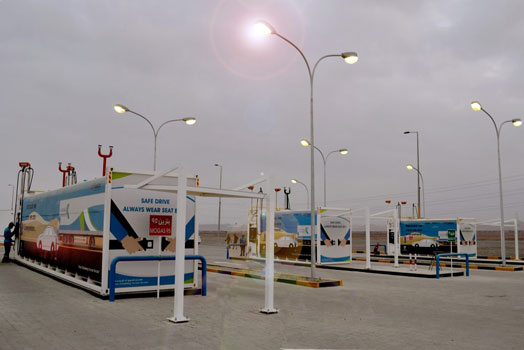

INDUSTRY APPLICATIONS



                      Home Base Refuelling



                            Unmanned Refuelling



                     Portable Energy Refuelling



                             Equipment Refuelling


Agribusiness. Commercial Transport & Logistics. Local Councils. Recreation. Portable Energy. Power Generation. Mining. Drilling. Construction. Equipment Hire amd Rental.



STANDARD FEATURES

  • Double-walled tank designed and constructed to AS1940, AS1692, UL-142 and ULC-S601-14 compliance as standard.
  • Supplied with all statutory signage.
  • Safe fill level capacities up to 71,300 litres.
  • Curved tank roof finish externally.
  • Unit based on 10', 20′ and 40' ISO style foot cube shipping container footprint for easy lifting and transport.
  • In-built tank access ladder and platform.
  • Dual 2″ manway tank access points, ITR-68 and ITR-75 are three manway.
  • Updraft vent pipe.
  • Calibrated aluminium anodized dipstick.
  • Interstitial space monitoring point with anodized dip stick.
  • Audible overfill protection alarm.
  • 6” flange for installation of submersible pumps.
  • Extra paint thickness based on 180 microns for extra protection during harsh climates.
  • Bunded cowling and dispensing area.
  • Dual hose high mast retractable units (Optional).
  • The pump bay with Lockable doors.
  • Suitable for fuel farm configuration (master and slave).
  • Transportable via tilt tray, side loader or flatbed semi-trailer.

INCOMING FUEL / PRODUCT

  • DN80 Tanker fill pipework.
    Fire safe flanged ball valve, camlock adaptor & cap.
  • Non return valve.
  • Overfill protection valve with optional unload pump.
  • Internal pipe work serviceable.
  • High level alarm; hazardous rated & battery powered.

OUTGOING FUEL / PRODUCT

  • DN80 Anti-siphon valve (foot valve).
  • Pipework terminates under walkway with ANSI flanges.
  • A 6″ socket in manhole for the mounting of submersible pumps standard.
    Pump suction line including priming point plug.

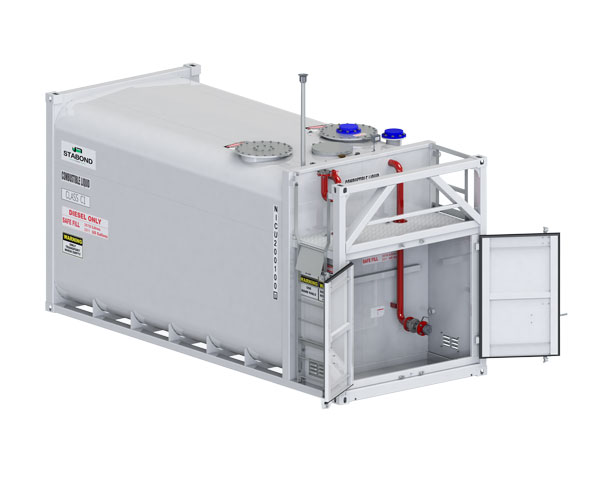

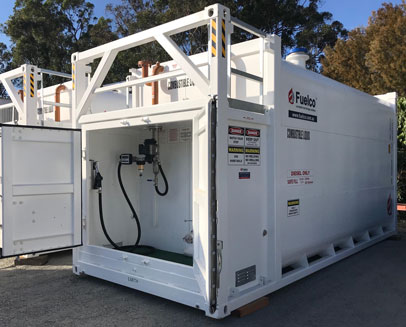

PUMP BAY

  • Pump bay complete with water/product drain valves.
  • Internal access for hoses from pylon kits.
  • Pylon kits with counter weights (optional).
  • Lockable bund doors with rubber dust seal.
  • Access ladder to work platform mounted on left or right hand side.
  • Bund ventilations.
  • Front earth connection.
  • Built in safety hand rail system.
  • Dual 50mm side wall cavity sockets.



*Conditions apply. Some features standard, some optional extras, depending on product range. Custom colours, coatings, dimensions and refuelling equipment packages are available upon request.







 KOMMANDER BULK TANKS

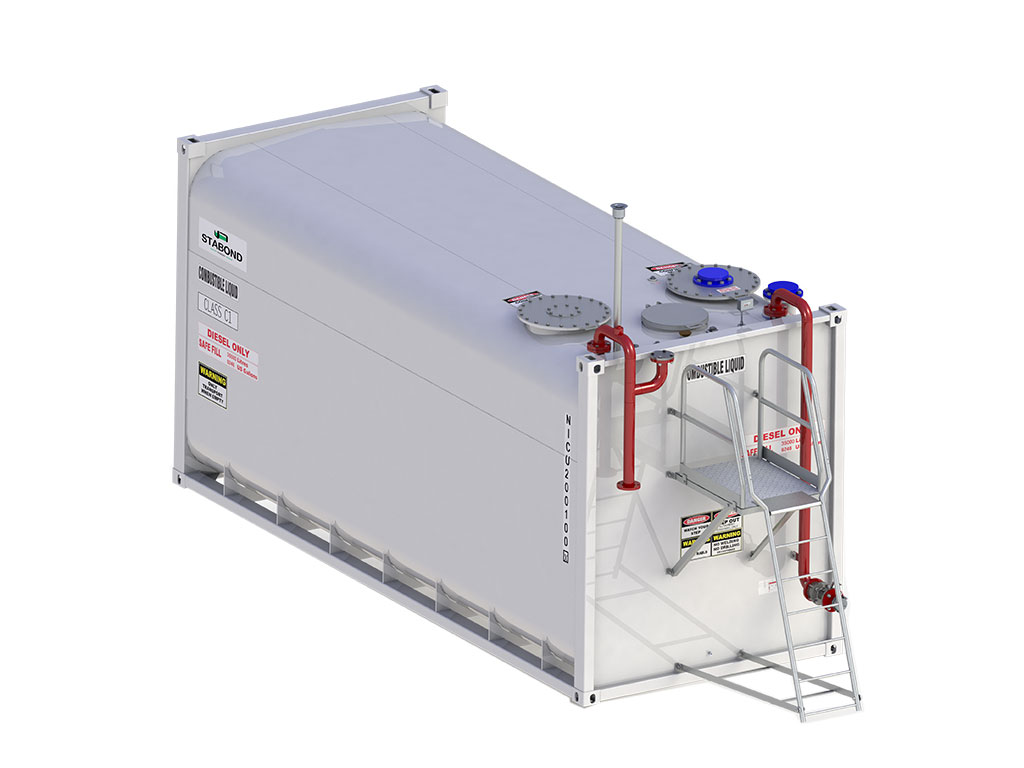

Intech build a range of bulk tanks a range of units without pump bunds, including ITR-20, ITR-38 and ITR-75. These tanks have the same external dimensions as the standard tanks, however the removal of the pump bund increases the capacity stored. Details of the sizes and capacities are in TABLE. As a bulk storage tank – external folding platform is still required to check dips as well as service etc.

Removable Pump Bay Is Optional
