Fuel Tank

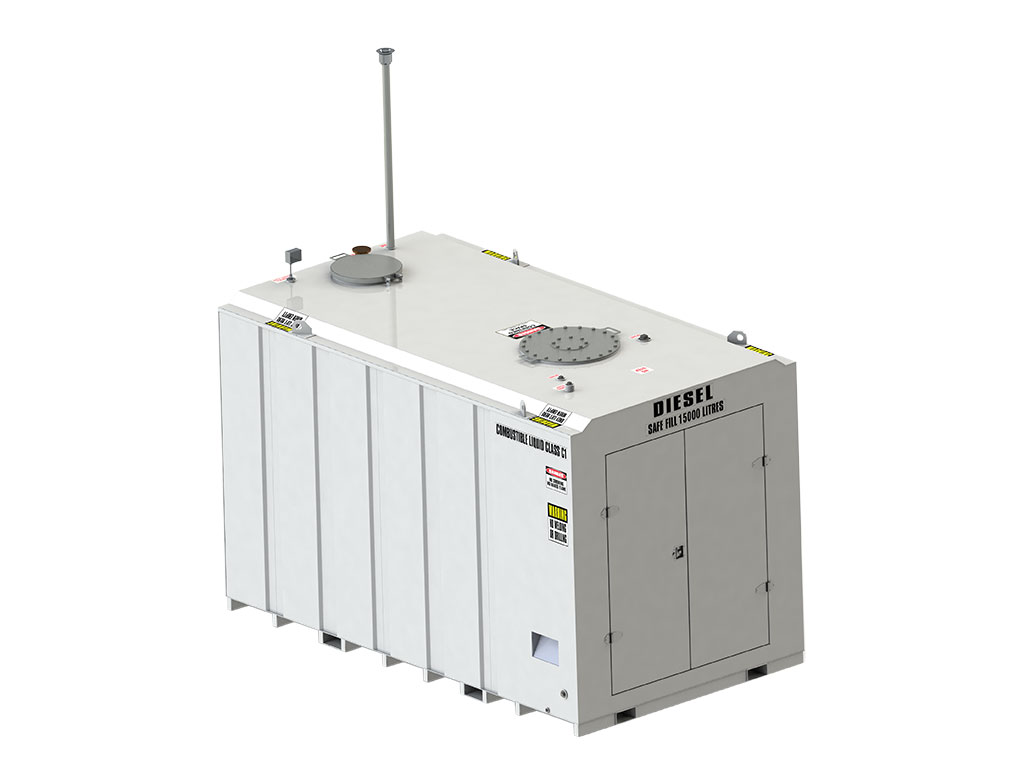

PORTABLE STORE TANK- Self Bunded (Double Wall) Small Foot Print Tank Range

Innovative new range of tanks. Perfect for home base refuelling applications with lockable full height pump bay housing for secure storage of dispensing equipment.

Suitable for the Storage and Dispensing of Diesel, Gasoline (Petrol), Kerosene, Lubricants and Waste Oil.

CODE

CAPACITY

SAFE FILL LEVEL

LENGTH (mm)

WIDTH (mm)

HEIGHT (mm)

WEIGHT

PS11

11,430L

10,850L

2950

2240

2520

3100KG

PS16

16,870L

15,000L

3950

2240

2520

3800KG

PS22

21,050L

20,000L

4950

2240

2520

4500KG



FEATURES:

  • PUMP BAY - Lockable full height pump bay housing for secure storage of dispensing equipment
  • COMPLIANCE - Designed and built in accordance with AS1940, AS1692 and AS1657
  • BUND - Galvanised grated bunded area with drain
  • FILL POINT - DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm
  • SUCTION POINT - DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.
  • WATER SUCTION - DN25 (1") water drain
  • SPARE FITTINGS - Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices
  • MANWAY - 600mm dia manway with internal ladder
  • DIPSTICK - Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting
  • INTERSTITIAL DIP - Anodised aluninium interstitial dipstick with brass lockable dipstick cover fitting
  • INTERSTITIAL VENT - Interstitial emergency vent
  • VENT - Primary tank free air vent
  • DECALS - Statutory safety decals
  • FORKLIFT TYNES - forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site
  • LIFTING LUGS - certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site.  The lifting lugs are NOT certified to lift the tank with fuel.
  • HOSE OUTLET - letterbox style secure weatherproof hose inlet / outlet assembly
  • PAINT -  Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Finished dry film thickness no less than 180 um.



PORTABLE STORE - Open Pump Bay - Optional

A full height open pump bay storage tank perfect for home base refuelling. Approved to AS1940, AS1692.
