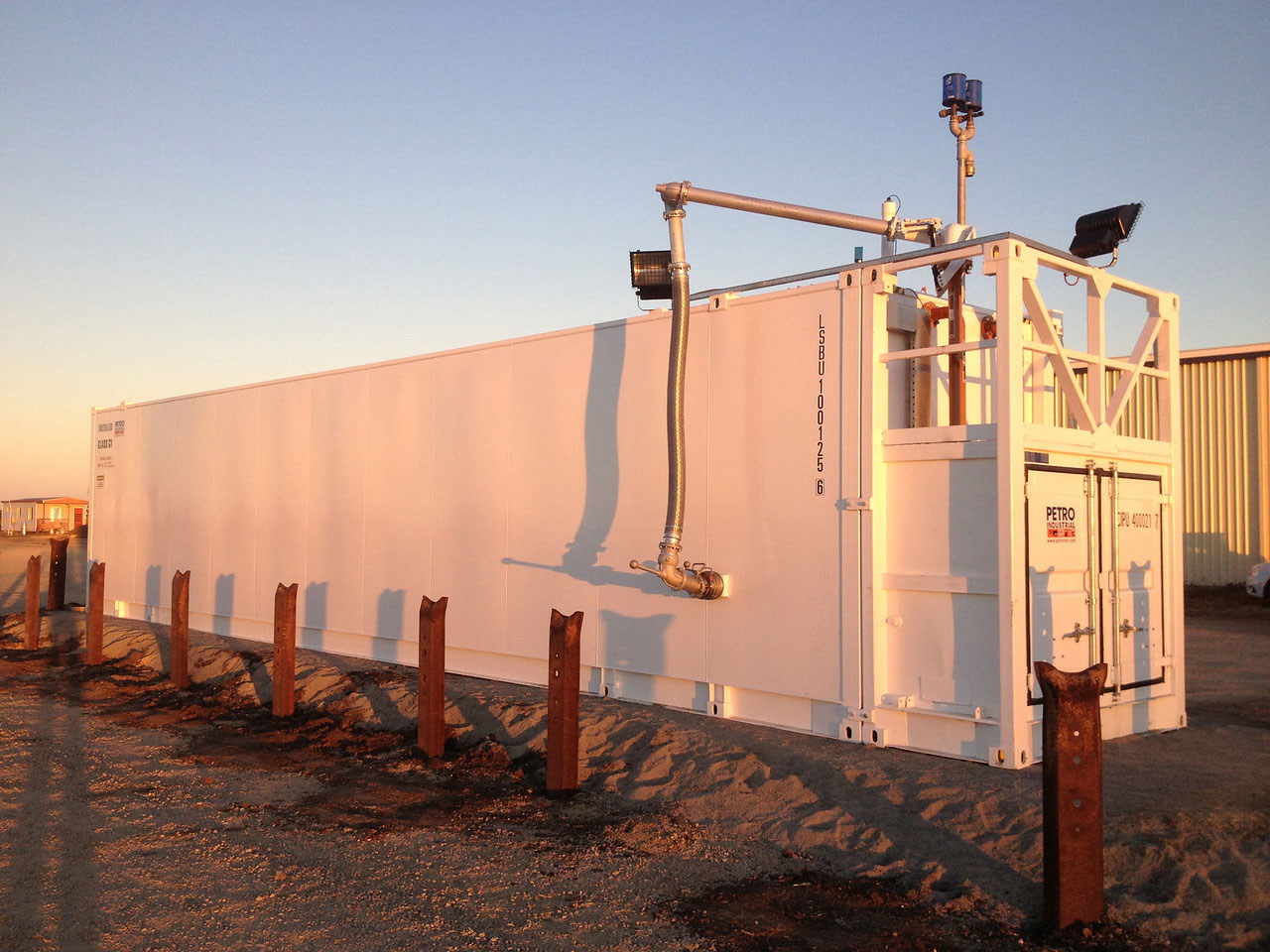

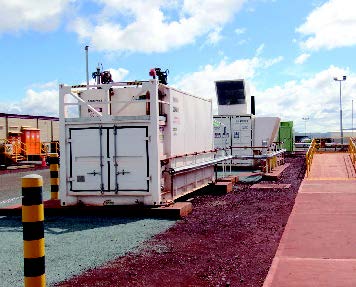

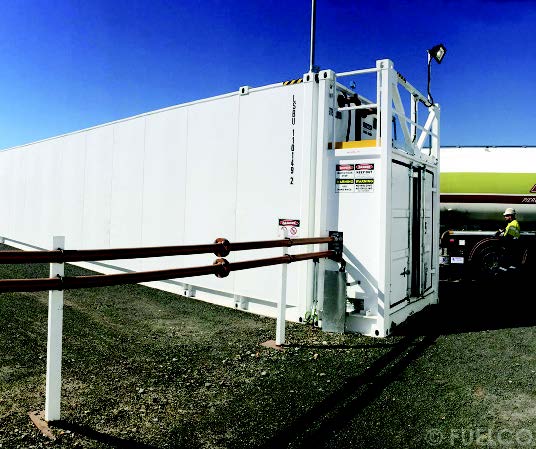

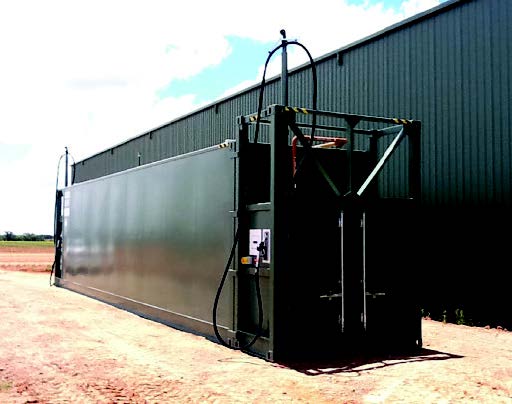

Klassic ITS Tanks

The ITS Series is a Klassic range of self bunded fuel storage tanks for combustibile liquids as well as other non-hazardous liquids up to 90,000 liters.

Intechs 20ft and 40ft tank are CSC plated and approved for rail, road, and sea transport.




Information
Features
Types
Components

The tanks are constructed to international ISO container footprints for ease of transport and transfer. The standard footprints are 3, 6, 12, and 14 metres utilising the container lock dimensions. This means these tanks can be transported without the need for specific costly logistics.

MODULAR STORAGE

Complete fuel, lubricant and chemical storage and dispensing system.

TRANSPORTABLE

Designed to be stacked for storage and transport empty. Fuel monitoring and management, filtration, tank farms, we offer a range of configurable storage solutions tailored to your industry. Minimum civil works required. The Forklift pockets and lifting lugs increase the manoeuvrability of the KLASSIC. Coupled with a pump, these are ideal for light vehicle refuelling, or refuelling generators, compressors, dewatering pumps and industrial tools. The number of standard feed and return line ports allow for the connection of up to 3 x generators or industrial equipment simultaneously.

SAFE & RELIABLE

Safe and speedy refuelling of heavy equipment ranges from single tank with integrated supply system through to bulk fuel storage ffrom 10,000 to 110,000 litres.

PROJECT MANAGEMENT

Qualified engineers, project management personnel available to assist with the design and install of single tank through to large fuel storage facilities.The range of tanks are primarily designed for the storage and dispensing of combustible liquids.

Industry Applications



                      Home Base Refuelling



                            Unmanned Refuelling



                     Portable Energy Refuelling



                             Equipment Refuelling


Agribusiness. Commercial Transport & Logistics. Local Councils. Recreation. Portable Energy. Power Generation. Mining. Drilling. Construction. Equipment Hire amd Rental.

Models and capabilities

Model
Number

Gross
Litres

Standard SFL 95%

Length
mm

Width
mm

Height
mm

Tare Weight
kg

ITS 12

12500

11115

2991

2438

2896

4800

ITS 18

17630

17000

2991

2438

2896

4800

ITS 30

31400

28700

6058

2438

2896

7800

ITS 36

36370

34200

6058

2438

2896

7800

ITS 68

68800

64600

12192

2438

2896

12800

ITS 75

73860

70550

12192

2438

2896

12800

ITS 80

81500

77425

14630

2438

2896

15500

ITS-100

100600

94500

14630

2438

3200

16500

ITS 110

113400

107730

14630

2438

3635

18000

*ITS-18, ITS-36, ITS-75, ITS-100 and ITS-110 model comes without a bunded pump bay.


Fuel Storage Compatibility
Diesel
Flammable Liquids
Kerosene
Lubricants


Standard Features*
• Aboveground modular ISO containerised self-bunded fuel storage tank design and constructed to AS1940, AS1692, AS1657, UL142 and ULC-S601-14 compliance as standard.
• Double-walled construction consisting of 6 mm primary steel tank

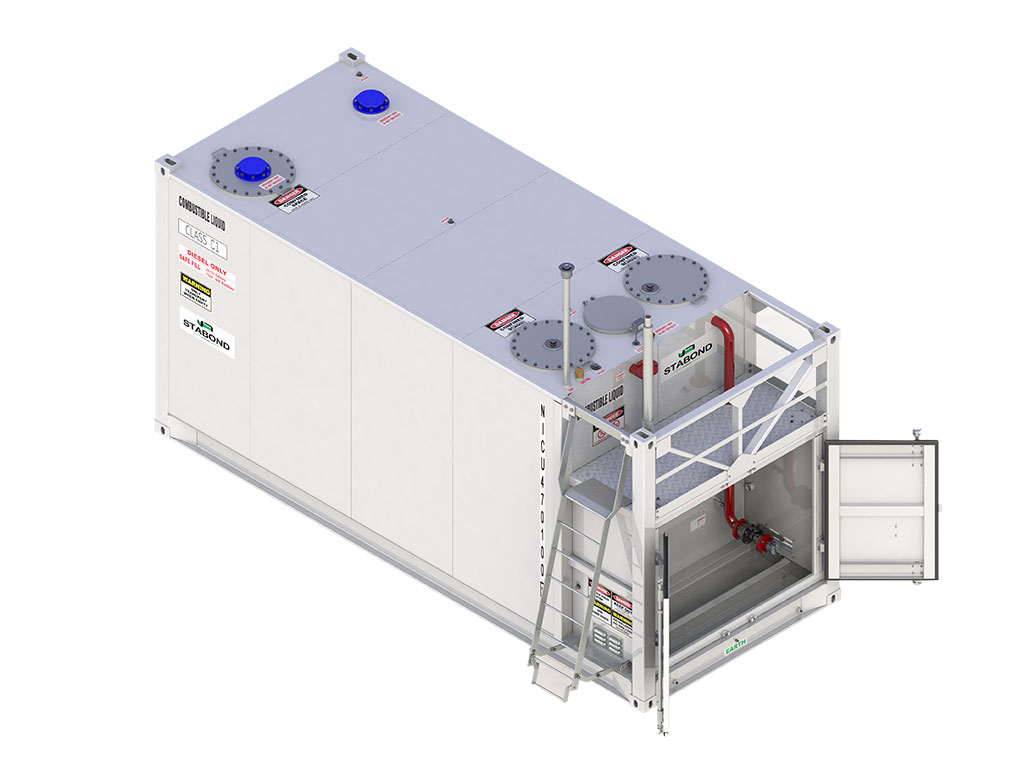

• Lockable self-contained pump bay and dispensing area to front of the tank
• Extra paint thickness based on 180 microns for extra protection during harsh climates
• Supplied with all statutory signage.

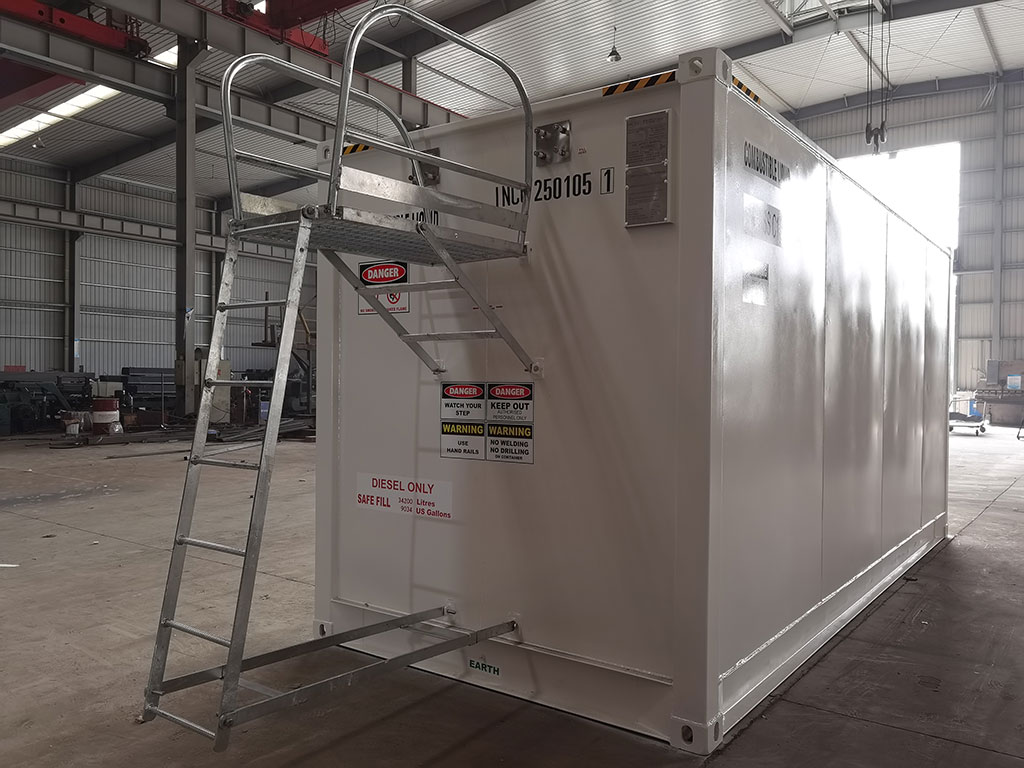

• In-built tank access ladder and platform
• 600mm manway tank access points
• Updraft vent pipe
• Aluminum anodized dipstick
• Interstitial space monitoring point with anodized dip stick
• Audible overfill protection alarm
• 6” sockets for installation of submersible pumps
• Bunded cowling and dispensing area

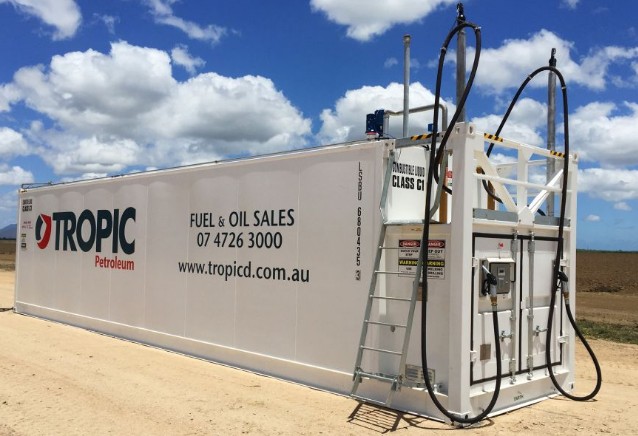

• Dual hose high mast retractable units
• Suitable for fuel farm configuration (master and slave)
• Transportable via tilt tray, side loader or flatbed semi-trailer
• 180 micron thickness ‘WHITE’ paint finish as standard (Other colour options are available upon request)
*Standard product specification and fitting arrangement may change as products evolve.

Incoming Fuel / Product
80nb Tanker fill pipework
Fire safe flanged ball valve, camlock adaptor & cap
Non return valve
Overfill valve with optional unload pump
Internal pipe work serviceable
High level alarm; hazardous rated & battery powered

Outgoing Fuel / Product
Anti-siphon valve (foot valve)
Pipework terminates under walkway with ANSI flanges
6" in both manholes for the mounting of submersible pumps standard
Pump suction line including priming point plug

Pump Bay
Pump bay complete with water/product drain valves
Internal access for hoses from pylon kits
Pylon kits with counter weights (optional)
Lockable bund doors with rubber dust seal
Access ladder to work platform mounted on left or right hand side
Bund ventilation
Built in safety handrail system
Dual 50mm side wall cavity sockets

Warranty
12 Month Manufacturer Warranty
12 Month Paint Warranty
7 year Structural Manufacturer Warranty

.





 KLASSIC BULK TANKS

Intech build a range of bulk tanks a range of units without pump bunds, including ITS-18, ITS-36, ITS-75, ITS-100 and ITS-110. These tanks have the same external dimensions as the standard tanks, however the removal of the pump bund increases the capacity stored. Details of the sizes and capacities are in TABLE. As a bulk storage tank – external folding platform is still required to check dips as well as service etc.

Removable Pump Bay Is Optional
