Dangerous goods stores
INTECH has developed an extensive range of Dangerous Goods Stores for the secure, environmentally compliant and safe storage of all of your chemical, hydrocarbon, paint, thinners and other liquid requirements.
Information
Features
Types
Components

We have put a lot of research into designing a compliant range of stores ensuring you meet the strict environmental rules and regulations relating to Dangerous Goods Storage.

Model

Tare weight

Capacity
Internal

Sump

External (LxWxHmm)

6FT

780kg

5.4m3

470L

1980 x 1950 x 1910

8FT

1150kg

10.4m3

900L

2438 x 2200 x 2260

10FT

1500kg

17.8m3

1150L

2991 x 2438 x 2591

20FT Open End

3550kg

36.5m3

2700L

6058 x 2438 x 2896

20FT Open Side and End

3200kg

36.7m3

2550L

6058 x 2438 x 2896

40FT Open Side and End

5350kg

75.2m3

5660L

12192 x 2438 x 2896



Applications:
1. Flammable products storage container
2. Paint and thinners storage container
3. Oils and diesel storage container
4. Liquids storage container


• CSC plated (10FT, 20FT & 40FT models);
• Fully bunded in accordance with AS1940 requirements;
• Galvanised removable grating for simple, easy cleaning of the bund
over time;
• Full bore lockable bund drain / evacuation valve;
• Marine grade paint;
• Weatherproof ventilation in accordance with AS1940 requirements;
• Internal emergency door release;
• Lockable doors with keyed lock system;
• Strong, robust, heavy duty design;
• Weatherproof large ventilation grills located both at the top and the bottom of the container to remove dangerous
fumes, reduce the temperature in the container and allow cross flow of air through the unit.

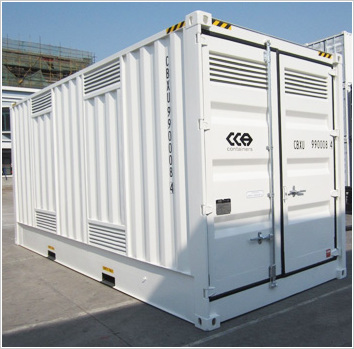

                   6FT, 8FT, 10FT                                               20FT Open End



              20FT Open End and Side                                   40FT Open End and Side
