Steel Frac Tank

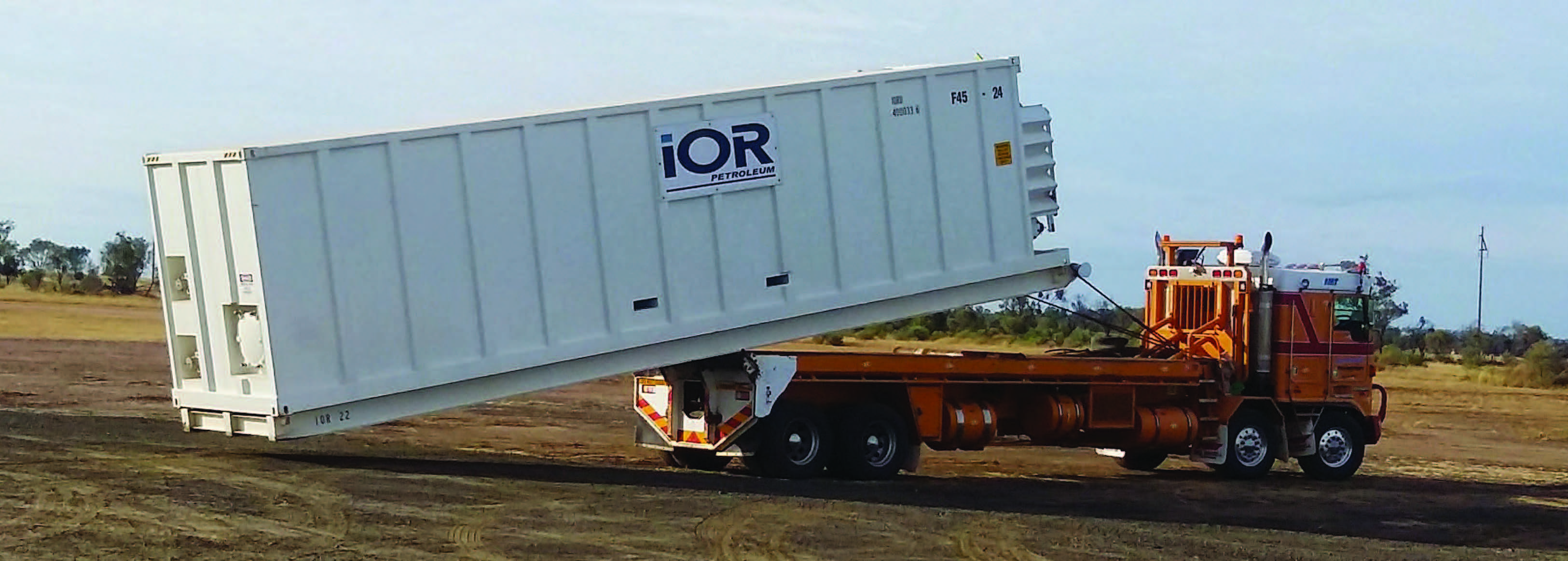

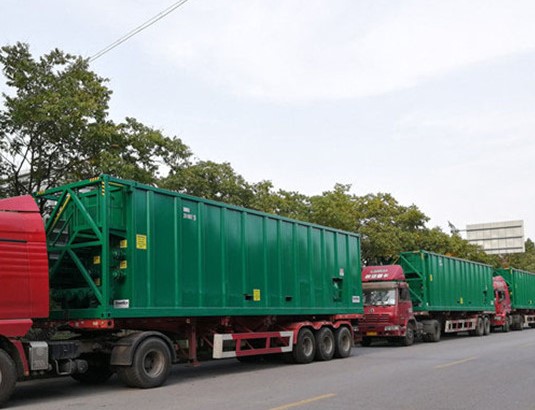

Skidded Frac Tanks (Closed top)

INTECH provides oil and natural gas producers with complete fluid management solutions.They are a containerised designed which can be transported and relocated easily. The skidded frac tank is normal 45FT container HQ size, 500bbl. We also providing 20ft, 40ft size, tanks can be customized to meet the specifications that you require.






Information
Features
Types
Components

Typically used for fracing wells in the oil and gas industry, a frac tank may also be used to store any liquids like run-off water, diesel fuel, glycol, oils, waste products, or for use when mining mud or drilling mud.


Standard inclusions across all steel frac tanks

• Corner castings at the ISO position for easy handling.
• Intermodal format allows cost effective mobilization to any remote site.
• “V” bottom internal format for easy drainage.
• Manway access side access for easy access and cleaning.
• Hatches in the roof.
• Full blanked manifold in front to allow multiple units to be connected for larger projects.
• Central valve on front and rear to allow operation from either end.
• Unit designed for the static storage of liquids on site.
• Optional Ground operated air relief valve.
• Supplied with removable robust frame bolted on the rear end to protect manifolds and to minimise damage any transport damage.

Tipical Features:

• Skid mounted with bumpers for easy movement on site.



Dimensions:
45'(L)x8'(W)x9-1/2'(H) can load 470 Barrel (approx 75CBM)
